    Stone Cutting Machine

    Product Introduction

    Product Name：

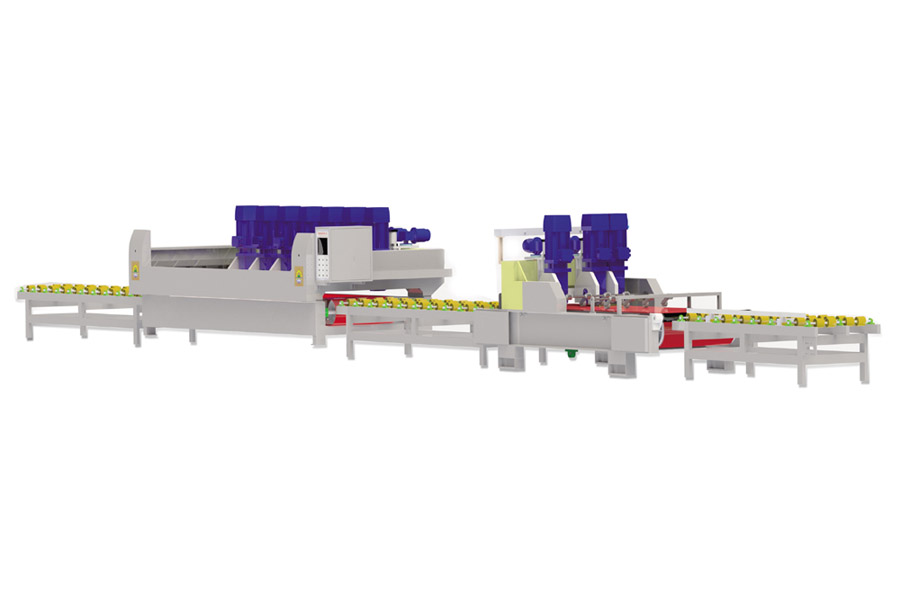

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail
    Name ZDQB-9T ZDQB-10T ZDQB-11T ZDQB-12T UNIT
    Heads (Front)3+(back)6 (Front)3+(back)7 (Front)3+(back)8 (Front)3+(back)9 heads
    Width of worktable

    1050(1250)

    		1050(1250) 1050(1250) 1050(1250) mm
    Max working thickness 70 70 70 70 mm
    Max.blade diameter Φ400 Φ400 Φ400 Φ400 mm
    Main motor power

    18.5

    18.5

    		18.5 18.5 kw
    Water consumption 36
    		 40 44 48 m3/h
    Overall dimension(L×W×H) 18.6×2.8×1.6 19.2×2.8×1.6 19.8×2.8×1.6 21.4×2.8×1.6 m
