    Stone Cutting Machine

    Product Introduction

    Product Name：

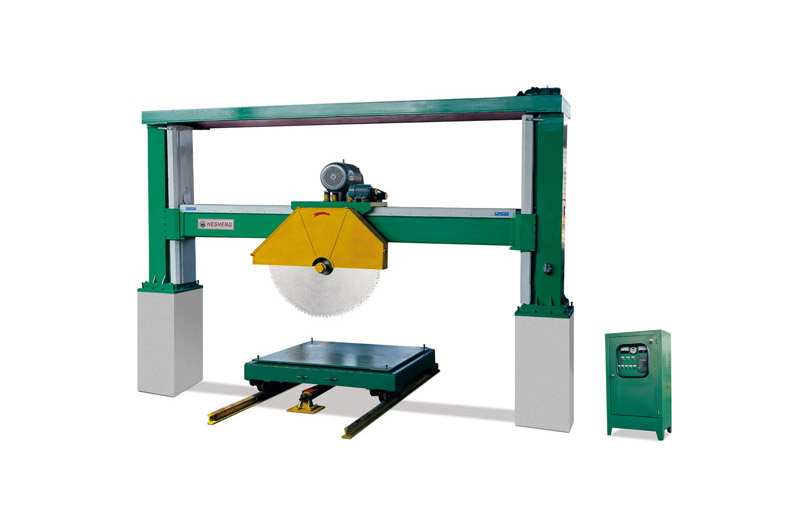

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail
    Model 3500 1600(Dressing)
    Blade max.diameter 3500mm 1600mm
    Num.of blades

    6(3×Φ1600+3×Φ940)/(Φ2200More monolithic)p

    		1p
    Lifting stroke 2000mm 3000mm
    Transverse cutting travel 4200mm 4200mm
    Max.cutting size(LxWxH)

    4000×2500×2000mm

    4000×2500×2500mm

    Sprindle drive motor 37KW
    		 37-55KW
    Gross weight 13500kg 14500kg
