    Product Introduction

    Product Name：

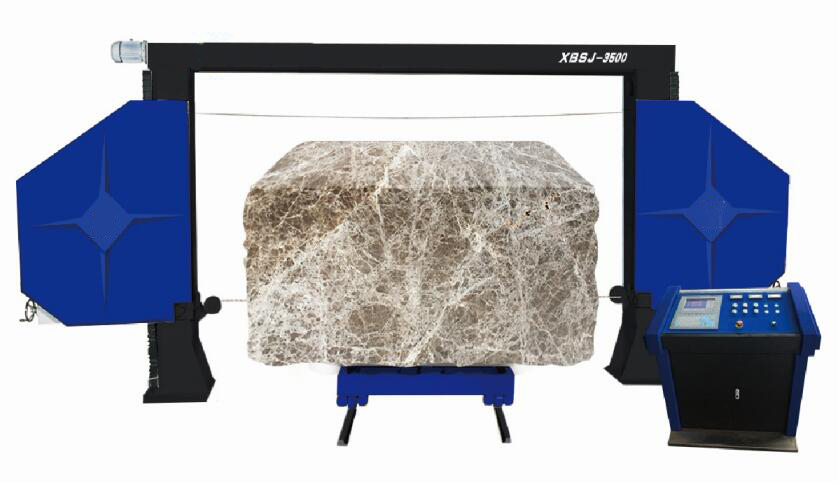

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail
    Model Unit XBSJ-3000 XBSJ-3500 XBSJ-4000
    Max. processing size mm 3000*3000*1500 3500x3500x1800 4000x3000x2100
    Product efficiency m2/h 1-2(marble)
    0.5-1(granite)     		1-2(marble)
    0.5-1(granite)     		1-2(marble)
    0.5-1(granite)
    Worktable size mm 2500*2000 2500*2000 2500*2000
    Wire length mm 1500 1600 1700
    Wire diameter mm 7.6-11.5 7.6-11.5 7.6-11.5
    Cutting linear speed m/s 25-45 25-45 25-45
    Main motor power KW 15 15 18.5
    Water consumption m³/h 5 6 6
    Overall dimensions mm 7500x6000x3800 8800x6800x4800 9800x7000x52000
    Gross weight KGS 7500 9500 15000
