    Allwin Diamond Tools enjoy good reputation in both local and over-sea market, nowadays we export to more than 50 countries, mostly to South America, Europe and Asia countries.

    Your Position：Home >Our Porducts>Stone Cutting Machine
    ProductsCategory
    Stone Cutting Machine

    Product Introduction

    Product Name：

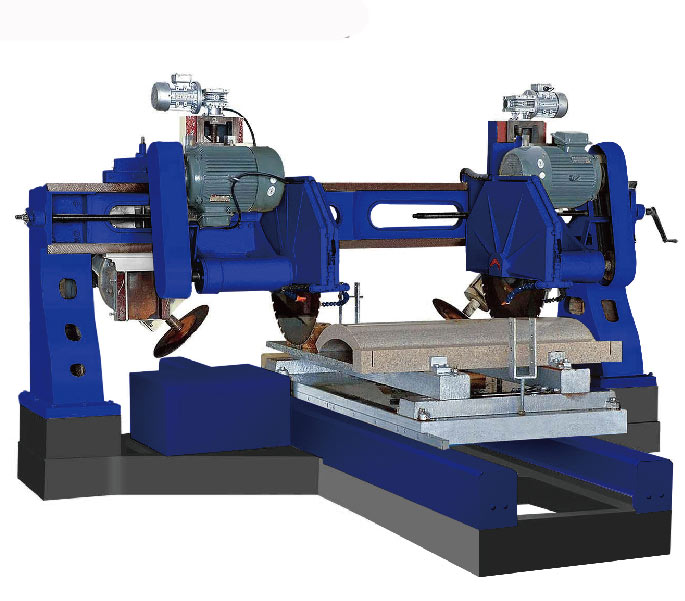

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail

    Model Unit YHQJ-2400 YHQJ-2800
    Power of main mator kw 11-18.5 11-18.5
    Power of vice mator kw 7.5 75
    Worktable length mm 2400 2600
    Slideway length mm 4000 4500
    Maximum process dimension mm 2400x1400 2600x1400
    Maximum process thickness mm 180 180
    Water consumption m3/h 2 2
    Dimensions(LxWxH) mm 4000x2100x2500 4500x2100x2500
    Diameter of main cutting frame mm 600 600
    Diameter of vice cutting frame mm 500 500
    Total weight kg 2200 2500
