    Stone Cutting Machine

    Product Introduction

    Product Name：

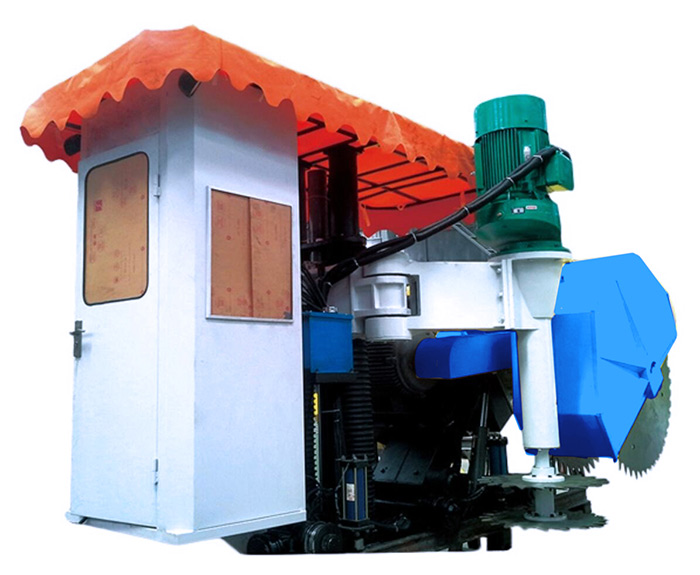

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    None
    Product Detail

    Model Unit KSSY-1400
    Blade No. pic 1-6
    Blade diameter mm Φ700-Φ1400
    Max. Cutting dimension mm 400x200x200
    Process depth range mm 0-60
    Process width range mm 0-60
    Lifting stroke mm 950
    Blade moving stroke mm 240
    Horizontal motor
    		 kw 45
    Vertical motor
    		 kw 75
    Total motor
    		 kw 130
    Rail distance
    		 mm 1000
    Overall dimension
    		 mm 3600x2350x2600
    Weight
    		 kg 7000
