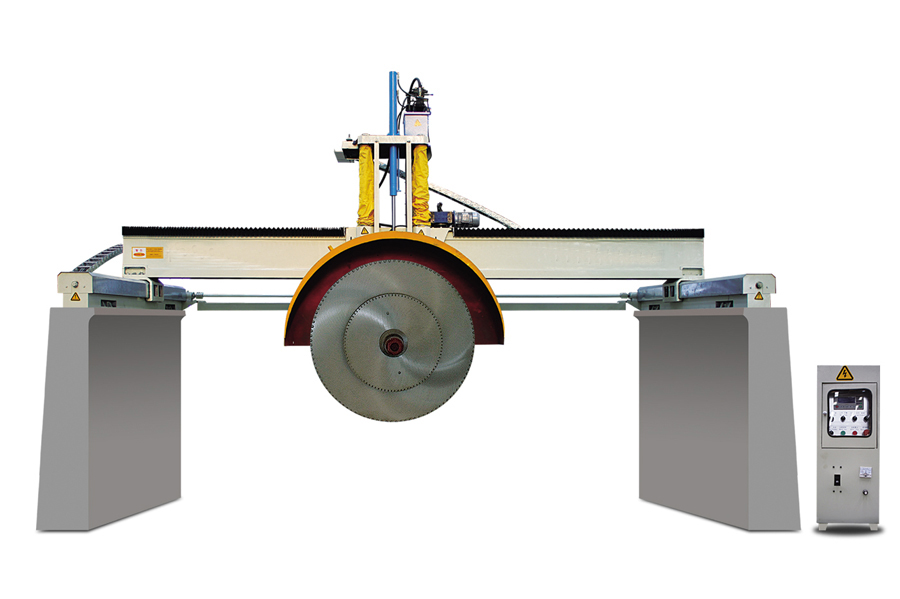

| Model | HSGJ-2500-6D |
|
| No.of Blade(Blade Combination) | Big-Medium-Small | p |
| Max blade diameter | Φ2500 | mm |
| Crossbeam Length | 7500(7200) | mm |
| Left/Right working range | 4300 | mm |
| Front/Back range(Side Bridge length) | 2200(3000) | mm |
| Up/Down working range | 1100/1350 | mm |
| Main motor | 37/45 | KW |
| Overall dimension(L*W*H) | 8200×3200×6500 | mm |
| Shaft Diameter of spindle box | Φ100 | mm |
| Grodd weight | ≈11.5 | T |
