    Stone Cutting Machine

    Product Introduction

    Product Name：

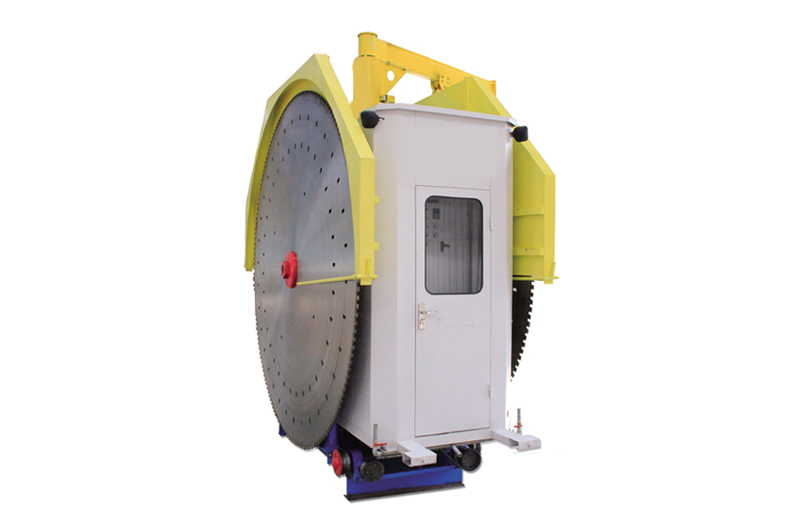

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail

    		 KSQJ-1360/1900 KSQJ-1500/2000 KSQJ-2600/3100
    Diameter of blade Φ2200-Φ3500*2 Φ2200-Φ3500*2 Φ2200-Φ4800*2 mm
    Scope of cuting depth 850-1500 850-1550 850-2200 mm
    Scope of cuting width 1360-1900 1500-200 2600-3100 mm
    Power of main-drive 30-45*2 30-45*2 37-55*2 kw
    Water consumption 5 5 5 m3/h
    Total power 79.2-95.2 79.2-95.2 79.2-115.2 kw
    Approximate weight ≈8000 ≈8000 ≈11500 kg
    Overall dimension(L*W*H) 3550×1450×2850 3550×1600×2850 5200×2700×3600 mm
