    Allwin Diamond Tools enjoy good reputation in both local and over-sea market, nowadays we export to more than 50 countries, mostly to South America, Europe and Asia countries.

    Your Position：Home >Our Porducts>Stone Cutting Machine
    ProductsCategory
    Stone Cutting Machine

    Product Introduction

    Product Name：

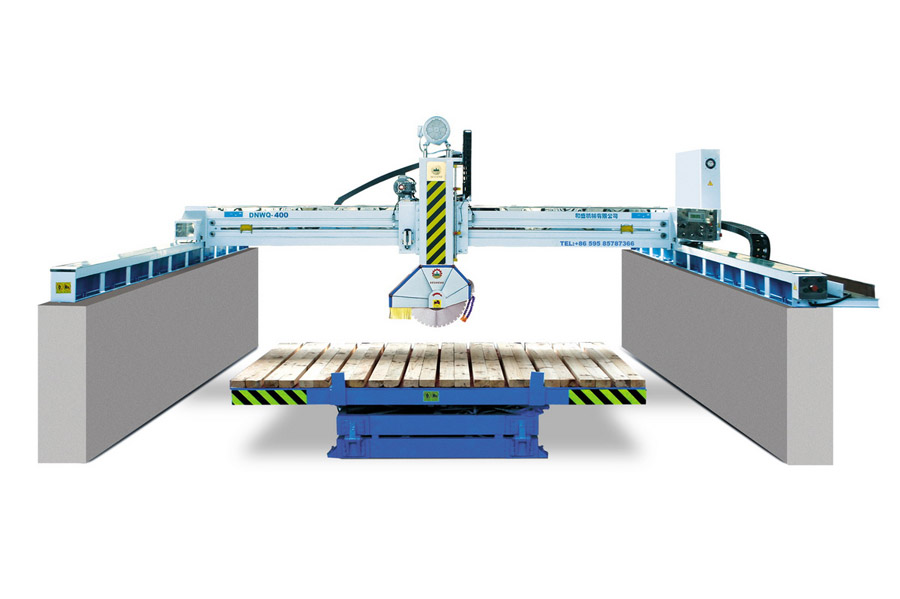

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail

    Model DNWQ-400 DNWQ-600
    Max. diameter of blade φ400mm φ600mm
    Workbench dimension(L×W)

    3200×2000 mm

    		3200×2000mm
    Workbench turnover degree 90°n° (45°,90°) n°
    Head tilting degree ------ ------
    Power of main motor

    15kw

    15kw

    Overall dimension (L×W×H)

    5800×4500×2800mm

    6200×5000×3000mm


    Model DNWQ-400A DNWQ-600A
    Max. diameter of blade φ400mm φ600mm
    Workbench dimension(L×W)

    3200×2000 mm

    		3200×2000mm
    Workbench turnover degree 90°n° (45°,90°) n°
    Head tilting degree 45°n° 45°n°
    Power of main motor

    15kw

    15kw

    Overall dimension (L×W×H)

    5800×4500×3100mm

    6200×5000×3300mm
