    Stone Cutting Machine

    Product Introduction

    Product Name：

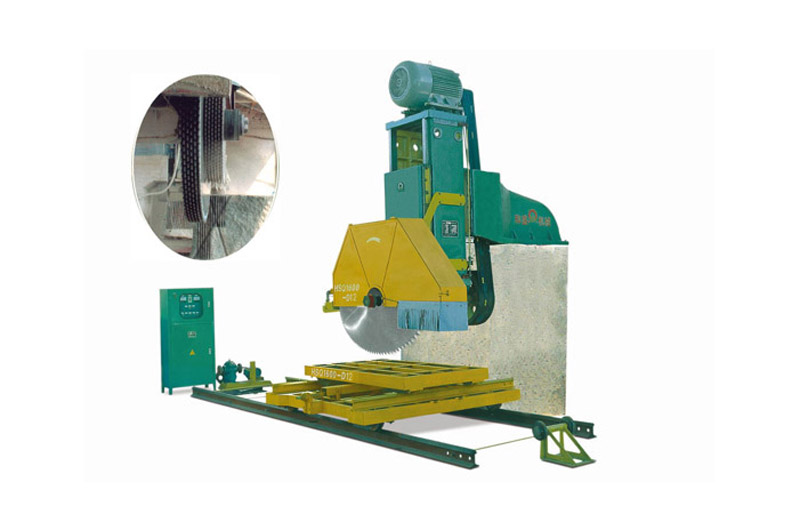

    Stone Cutting Machine
    Categorys：
    Stone Cutting Machine

    Prev：
    Stone Cutting Machine
    Next：
    Stone Cutting Machine
    Product Detail
    Model D4 D6 D10 D12 D16 D20
    Blade diameter (mm) (φ1600mm) / (φ2200)
    Number of blades (pc)

    4

    		6 10 12 16 20
    Lifting travel (mm) 1050mm/(1350mm)
    Max. cutting size (mm) 3500×(850;1000;1100;1200;1350;1450)×800/(1300)mm
    Power of main motor (KW)

    30

    37

    		45 55 65 75
    Water consumption (m3/h) 8
    		 12 20 24 32 40
    Overall dimension(L×W×H)(mm)

    8200×4350×5400(5700)

    8200×4550×5500(5800)

    8200×4900×5600(6000)

    8200×5100×5800(6200)

    8200×5400×5900(6300)

    8200×5500×6100(6400)
